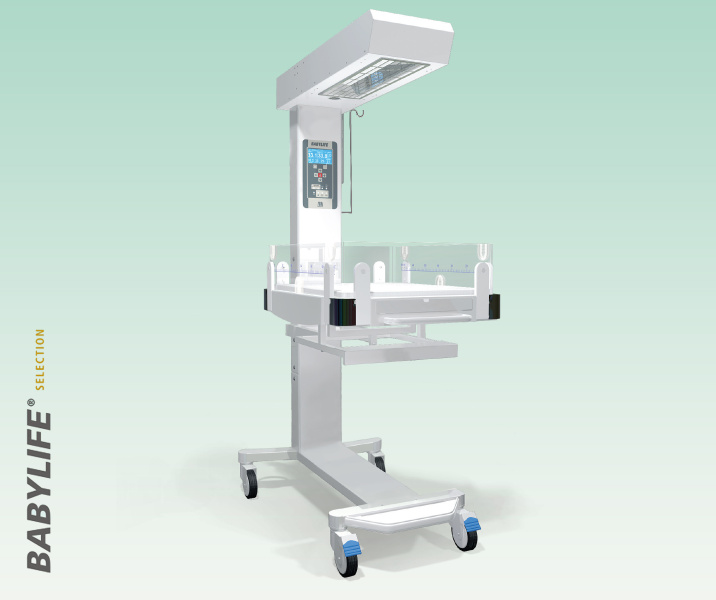

Babylife BLR-2100A

BABYLIFE BLR-2100A

Warming and Resuscitation Table

Babylife BLR-2100A

Featured benefits

  • Automatic warm-up
  • Pre-warm (33 oC) & Manual mode (0-100% in 5% increments)
  • Surface temperature servo control (30-38 oC)
  • Skin temp. servo control (32-38 oC increments 0.1 oC) with reusable sensor
  • Heavy duty stand with 4 castors (2 lockable, 150 mm)
  • Protector bumpers on each side & handle on front
  • Foldable side walls (4 pcs, height 17,5 cm) w/ name plate
  • Tube ports & measure line on side walls

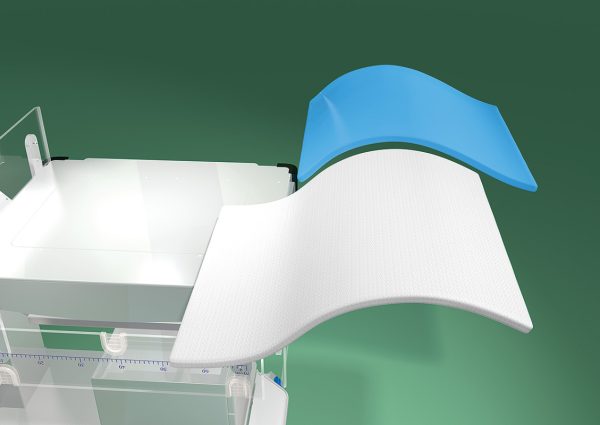

  • Lying surface w/ antidecubitus mattress, x-ray compatible
  • Cradle tilting (continuous, up to 10 degrees, both direction)
  • Drawable cassette tray (35 x 65 cm)
  • Ceramic heaters with parabolic reflectors and protecting grid
  • Cupboard with two drawers (300x300x90 mm)
  • Dimmable halogen & LED procedure light
  • 5” LCD display with APGAR timer
  • Set / Display of date / time / temperature / trend, etc.
  • Water resistant, foil-covered keypad with lock
  • State-of-the-art microprocessor controller
  • Visual and audible alarms and backup sensors
  • Continuous self-test function during operation
  • Test button / Self test / Silence / Reset button
  • RS-232 connector
  • 230V/50Hz+/-10%

PHYSICAL ATTRIBUTES (STANDARD VERSION)

Height / Adjustable / Packing

185/185-200/112 cm (72,8/72-78,7/44,1 in)


Width / Packing

185/185-200/112 cm (72,8/72-78,7/44,1 in)


Depth / Packing

71/81 cm (28/31,9 in)


Bed to Floor (fix)

87 cm (33,5 in)


Bed to Floor (adjustable)

87 – 102 cm (33,5 – 39,4 in)


Weight / Packing approx.

90/120 kg (199/265 lbs)


Mains voltage

220/230V ±10%


Mains frequency

50 Hz

Nominal power consumption

1100W


Nominal power of ceramic heaters (2 pcs)

500 W

Operating ambient temperature range

+20°C - +30°C (68oF – 86oF)


Storage/transport ambient temperature range

-40oC - +70oC (-40oF - 158oF)


Operating (Storage) ambient RH range

30% - 75% (10% - 100%)


Operating (Storage) air pressure range

700 hPa - 1060 hPa (500 hPa - 1060 hPa)

WEIGHING SCALE

Weight range

0 to 8 kg (17,1 lbs)


Weight display resolution

5 gr or 0,2 oz


Weight accuracy up to

5 kg ± 5 gr, over 5 kg ± 10 gr


Low voltage alarm

LOADING

Max. load of mattress

10 kg (22,1 lbs)


Max. load of IV pole

2 kg (4,7 lbs)

Max load of shelves

2 kg (4,7 lbs)

DEVICE CLASSIFICATION

Protection class

Class I, Type BF, continuous operation


Ingress of liquids

IP20


Electric safety

IEC 60601-1; IEC 60601-2-21


TREND PARAMETERS

3/24/170-hour trend

Surface temperature, Skin temperature, Mattress temperature, Peripherial temperature, Oxygen concentration, Heater power

More Technical Data

Heavy duty stand with 4 castors (2 lockable, 150 mm)
Electric height adjustment with foot pedal 870 – 1020 mm
Instrument shelf on the stand (350×790 mm)
Cupboard with two drawers (300x300x90 mm) on the stand
Cupboard with four drawers (300x300x90 mm) on the stand
Gas cylinder holders (two) on the stand
Protector bumpers on each side
Handle for movement
Monitor shelves (two) on the column
IV pole on the column
Foldable side walls (4 pcs, height 17,5 cm)
Measure line on two side walls
Tube ports on side walls
Name plate on front wall
Lying surface with foam mattress, x-ray compatible
Lying surface with anti-decubitus mattress, x-ray compatible
Gel mattress
Net mattress
Mechanical cradle tilting (continuous, up to 10 degrees, both direction)
Drawable x-ray cassette tray (35 x 65 cm)
Turnable head by 30 and 90 degrees both direction
Ceramic heaters (two) with protecting grid
Bright and soft lighting
Dimmable halogen light
LED procedure light
10,4” colour touchscreen monitor
WIFI connection
7” colour LCD display
RS-232 connector
Text / icon messages
Test button / Self test / Silence / Reset button
Continuous self-test function during operation
Visual and audible alarms and backup sensors
UPS (Uninterruptible Power Supply) from 30 min operation time
State-of-the-art microprocessor controller
Water resistant, foil-covered keypad with lock
Integrated camera
Display of heating intensity, 3/24/170 hours trend, actual and measured values
Keypad lock
APGAR timer
Ambient temperature monitoring
Set / Display of date / time / temperature, etc.
5” LCD display
LAN connection
RS-232 разъём
Automatic warmup
Pre-warm mode (33 °C)
Manual mode (0-100%)
Surface temperature servo control (30-38 oC)
Skin temperature servo control (34-38 oC)
Adjustable mattress heating (30-33/36 oC)
Peripherial skin temperature sensor with one reusable probe
Peripherial rectal temperature sensor with one reusable probe
Reusable skin temperature sensor probe
Disposable skin temperature sensor probe
Reusable rectal temperature sensor probe
Disposable rectal temperature sensor probe
Flowmeter with heated humidifier (0-6 or 0-15 l/min)
Oxygen servo in head-hood (21-75%)
NeoTee disposable infant T-piece resuscitator with PIP and PEEP control
Integrated Neonatal T-piece Resuscitator with PIP and PEEP control
Auto NeoBreath Integrated Neonatal T-piece Resuscitator with PIP and PEEP control
Air/Oxygen blender
Weighing scale with display (0-8 kg)
Built-in pulseoximeter with reusable sensor probe and extension cord
Reusable SpO2 sensor probe
Disposable SpO2 sensor probe
SpO2 extension cord
Venturi type suction unit with jar (-1,0 бар 500 мл)
Electromechanical type suction unit with jar (-1,0 bar; 500 ml)
Integrated LED phototherapy unit
Fixing head frame
Head-hood
Neonate protecting eyemask (disposable, 10 pcs)
Reusable textile cover
