Cryostate M630 Semi-automatic floor standing cryostat

The Cryostat M630 is an extensively equipped laboratory device for high speed cryo sections with a powerful  cooling unit and a high-precision, semi-automatic microtome. The standard model comes with a specimen clamp with fine adjustment and UV light disinfection. With plenty of free room at knee height, the Cryostat M630 can be used in a sitting position as well as standing position.  As special feature, two fixed height adjustments are available, in order to adjust the Cryostat M630 as best as possible to  the comfort of the main user.

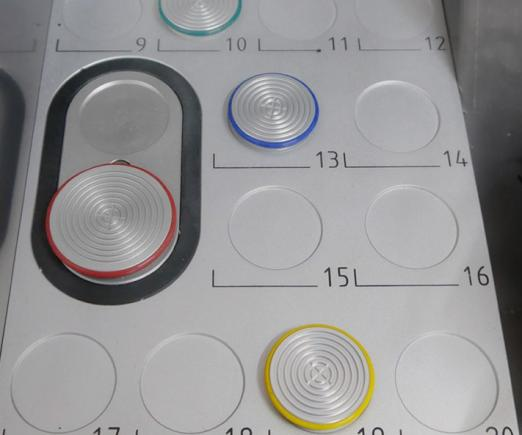

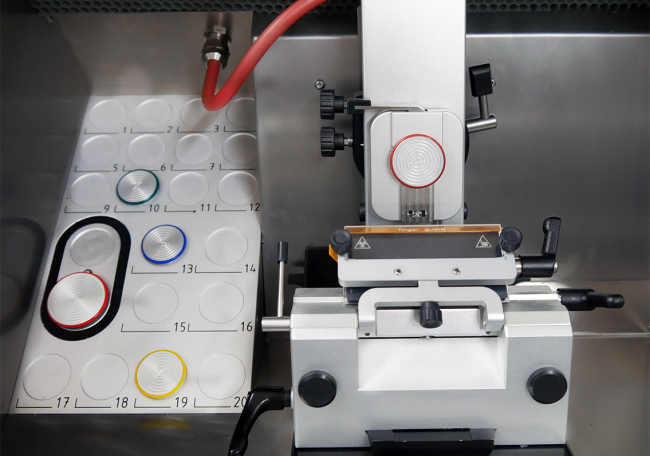

The cooling chamber of the Cryostat  M630 is illuminated with an LED light strip, the brightness of which can be dimmed up or down. The powerful cooling unit reaches a temperature of down to -35 °C. Inside the cooling  chamber is a deep freezing rail with 20 positions for tissue samples. Two additional quick freeze positions can cool down to 20 °C below chamber temperature and can be set separately.

The cooling chamber is closed with a safety glass pane that is heated and thus prevents  the formation of condensation on the pane.

Microtome and cooling chamber are operated and set using two separate touch displays. They are positioned above the cooling chamber for easy access and intuitive to use.

The Cryostat M630 can be  defrosted  automatically using a timer function  or manually.   The smooth stainless steel surfaces of the cooling chamber allow easy cleaning and disinfection. Any condensation that may arise during operation is drained to a collecting bottle via the integrated drainage system
