Delphi-X Inverso

Delphi-X Inverso

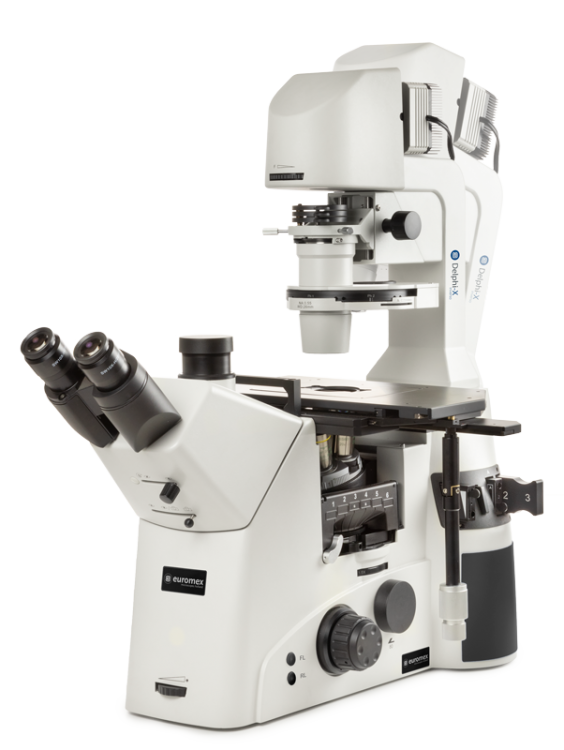

Inverted Microscope

Delphi-X Inverso™ is an inverted microscope for the professional with demanding applications of living cell cultures and stained samples. It is available in two configurations:

  • for phase contrast plus DIC (differential interference contrast) equipment
  • for fluorescence application

Super contrast semi-apochromatic objectives with collar adjustment ring assure perfect observation of cells or tissues in 1.2 mm thick Petri dishes or flasks

Delphi-X Inverso

Highlights

  • Life science applications
  • Brightfield, phase contrast
  • Long working distance IOS plan semi apochromatic objectives
  • 5 W LED or 100 W halogen transmitted illumination
  • Easy placement of large objects.
  • Observation of tissue cultures, living cells
  • DIC (differential interference contrast)
  • Revolving sextuple nosepiece
  • Backwards tilting condenser arm

Specification

EYEPIECES
Pair of DIN HWF plan 10x/25 mm or 10x/22 mm eyepieces with diopter adjustment (optional)

HEAD
Trinocular 45° inclined tubes. Interpupillary distance of 47 to 78 mm. Trinocular head with 100-0, 80/20 and 0/100 positions

NOSEPIECE
Revolving sextuple nosepiece on ball-bearings. The nosepiece can be equipped with DIC prisms for the 10x, 20x and 40x objectives

OBJECTIVES

  • High numerical infinity semi-apochromatic long working distance plan phase Fluarex PLPHFi 10x/0.30, 20x/0.45, S40x/0.60 IOS objectives enable the sub-cellular structures
  • An optional 4x/0.13 and 60x/0.70 IOS objective is also available
  • The 20x, 40x and optional 60 objectives are equipped with collar adjustment ring for glass thicknesses from 0 to 1.2 mm

Fluarex™ objectives are made of low-absorption glass
Fluarex™ is a trademark of Euromex microscopen bv
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAGE
Stage 340 x 230 mm, equipped with a coaxial mechanical 130 x 85 mm X-Y stage. Supplied with:

    • Metal insert for ø 38 mm cell culture dish
    • Metal insert for ø 54 mm cell culture dish or 76 x 26 mm slides
    • Metal insert for Multiwell plates (127.76  x 85.48 mm)

Metal insert for Teraski plates (83.3 x 58.0 mm)

  • Optional universal cell culture holder

CONDENSER
Rotating N.A. 0.55 condenser with 6 positions, iris diaphragm and filter holders. Working distance is 26 mm. Supplied with phase contrast annuli for 10x/20x, 40x and 60x objectives, brightfield position and slots for optional DIC prisms. Three filter holders allow the insertion of Ø 38 mm filters in the optical path. The arm with condenser can be tilted backwards for convenient access to the stage. This allows easy placement of large objects like flasks and Petri dishes

MAGNIFICATION CHANGER
A magnification changer with a 1.5x lens allows intermediary magnifications of 1.5 times the standard objective magnifications. For example switching from 20x to 30x or from 60x to 90x magnification can be done without the need to change objectives
