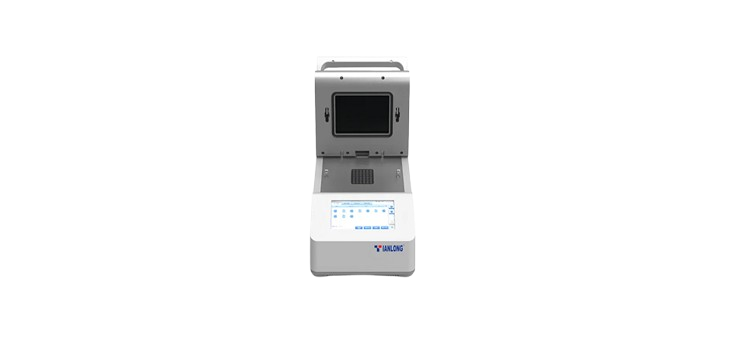

The Tianlong Gentier 48R Real-time PCR System incorporates innovative optical technologies with powerful software to provide maximal reliability and efficiency for all your real-time PCR needs. It is designed to meet the needs of small and medium-sized laboratories, mobile laboratories, and on-site testing. With the 2 fluorescence channels, The Tianlong Gentier 48R Real-time PCR System can process 48 samples in one run. It can make your experiments easier to use, more accurate, and efficient of its excel-lent performance and portability.
48 samples to be scanned in 2s: Only 2s for all 48 wells of fluorescence scanning can significantly reduce testing time and improve efficiency for lab professionals.
More convenient with two configurations: Standalone configuration: 7-inch touch screen, direct print sample amplification curve, and CT values by connecting to a thermal printer(optional);
Power failure protection design: Power failure protection design can recover the experiment automatically, with no more concern about instantaneous power failure.
PC control configuration: PC software control via connection, one PC can max control 10 instruments
Efficient temperature control: The Gentier 48R Real-time PCR System only takes 40 minutes to complete a standard PCR amplification process, Temperature accuracy is controlled within 0.1℃.
Powerful software analysis: Gentier 48R offers multiple functions including relative quantification, absolute quantification, melting curve analysis, SNP analysis, and is compatible with other fluorescence analysis functions based on the isothermal amplification technique.
User-friendly and more flexible: Small in size and light in weight, it can be moved flexibly to your mobile laboratory for on-site testing.
Model | Gentier 48R |
Throughput | 1-48 |
Fluorescence Channels | 2 |
Fluorescence Scanning Time | 2s |
Dye Compatibility | High-brightness, long life and maintenance-free LED light source |
Detector | Photodiodes (PDs) |
Excitation Range | CH1: 470nm CH2:523nm CH3:570nm CH4:638nm |
Detection Range | CH1:525nm CH2:564nm CH3:610nm CH4:685nm |
Fluorescence Dynamic Range | Adjustable |
Sample Dynamic Range | From 101 to 1010copies |
Heating Method | Peltier |
Heating Rate | ≥8.0 ℃/s ℃ |
Cooling Rate | ≥6.2 ℃/s |
Temperature Accuracy | ≤0.1 ℃ |
Gradient Range | 1℃-40 ℃ |
Gradient Block | 8 row |
Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 |
Control Modes | Model1: 7 inch touch screen |
Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
Reporting Function | Templates reserved; customized experiment report |
Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
Operating System for PC | Win7/Win10/Win11 |
Power Supply and Power Consumption | AC 100-240V,S0-60HZ; 600VA |
Weight | 11 Kg (net) |
Instrument Dimension | 260*400*260mm (W*L*H) |
Suitable Consumables | 0.2mL clear non-skirt 48-WELL plates, 8>tube strips, single tubes, etc. |
Certificate | IVDR CE |
