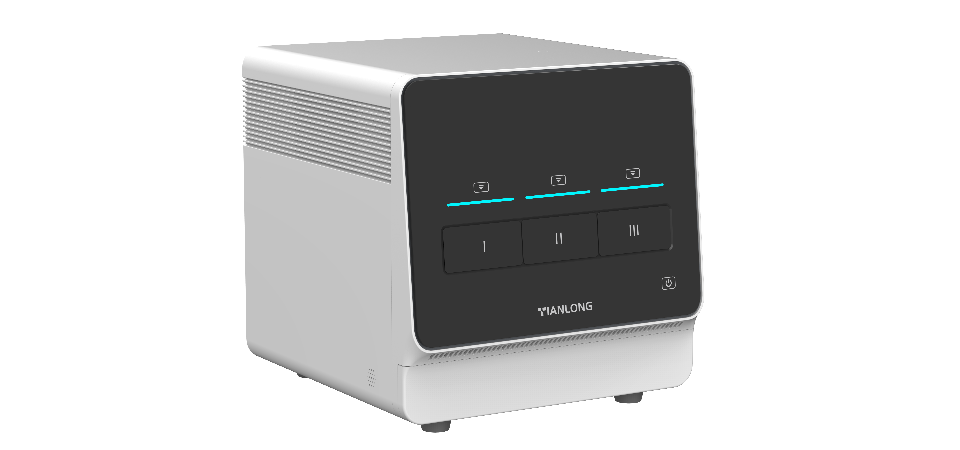

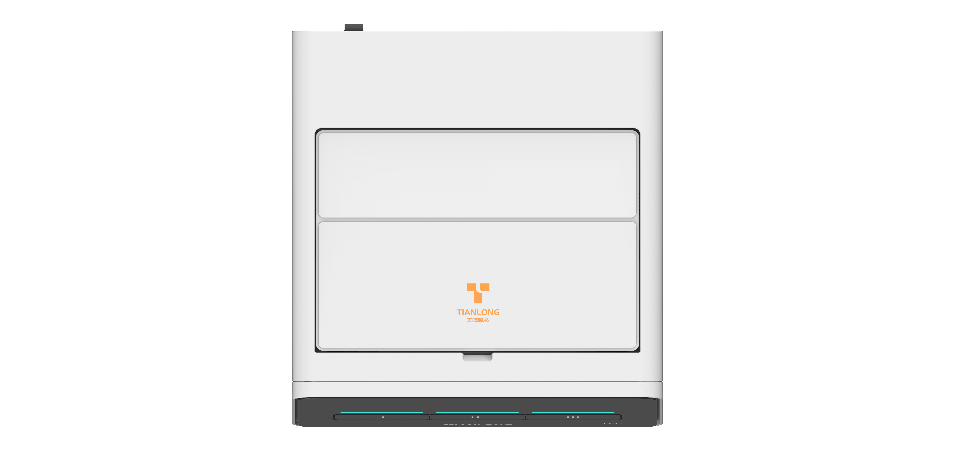

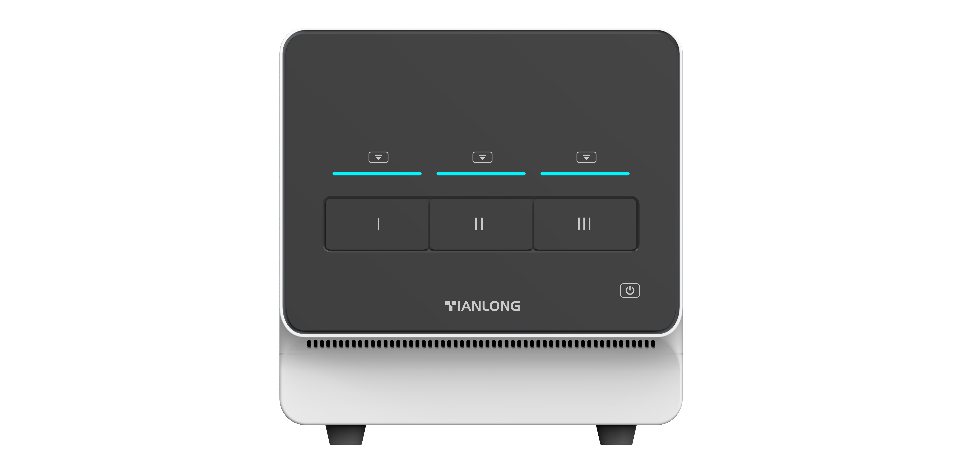

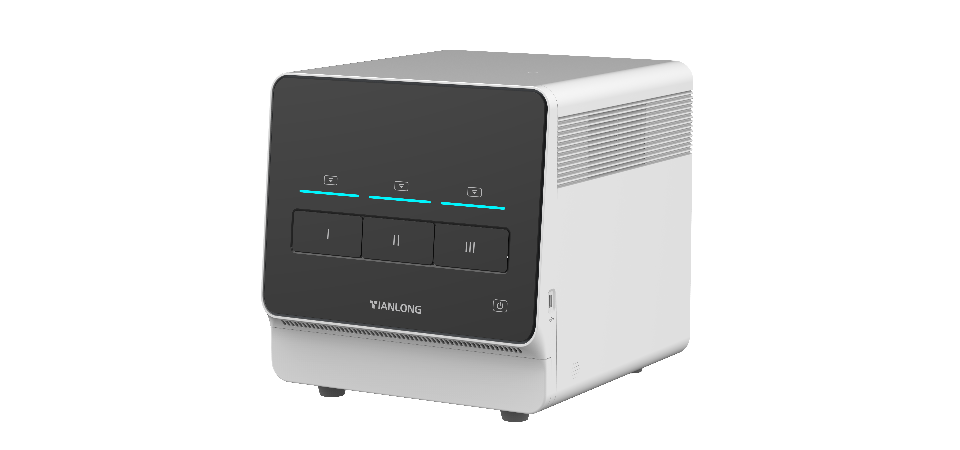

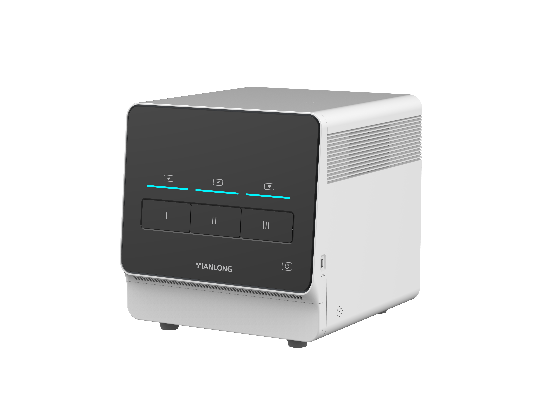

Gentier X3 Series Real-Time PCR System

PCR thermal cycler is the fundamental instrument that provide specific temperature cycling for PCR reactions and facilitate DNA amplification.

Tianlong Gentier X3 Series real-time PCR equipment features three independent thermal blocks, supporting users to run a maximum 3×32 well samples in three different protocols simultaneously. This feature can help you save a lot of time and budget. With the powerful and efficient temperature control system, user-friendly operational designs, Tianlong Gentier X3 Series can provide maximal reliability and efficiency for all your real-time PCR needs.

Features and specifications.

A1. Multi-block design for maximum versatility.

Gentier X3 Series is a 3 block PCR machine. It can process a maximum 3×32-well samples in three different protocols at the same time.

B1. 32 wells fluorescence scanning in 2 seconds.

With 6 or 4 fluorescence channels depending on the model, GentierX3 Series can complete 32 wells of fluorescence scanning in one block within 2s, serving as a great boost to the PCR testing efficiency when there is a high throughput need.

C1. Efficient temperature control

The Gentier X3 Series PCR cycler delivers precise temperature control (≤ 0.1℃) along with a compensation heating function for accurate reactions and uses a hot lid with pressure sensing to prevent consumable deformation and evaporation.

D1. Powerful software analysis

Gentier X3 Series can offer multiple functions including absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, endpoint fluorescence, etc.

E1. User-friendly design for professionals

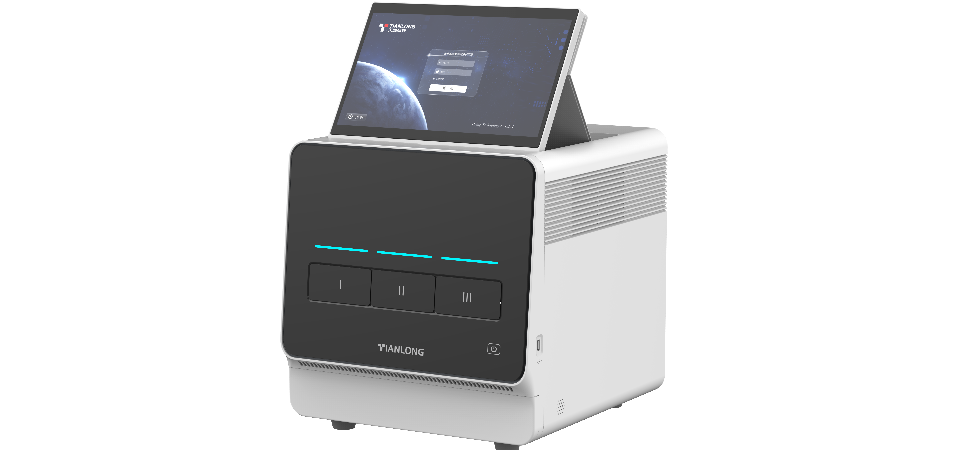

The Gentier X3 Series PCR thermal cycler systems feature a 13.3-inch full-color touch screen adjustable for ergonomic viewing, offers standalone and PC control options, and includes power failure protection to automatically resume experiments.

Model	Gentier X3E	Gentier X3S	Gentier X3R	Gentier X3C
Touch Screen	Yes	No	Yes	No
Stand Alone Operation	Yes	No	Yes	No
Throughput	32 х 3	32 х 3	32 х 3	32 х 3
Fluorescence Scanning Time	2s for 32 wells fluorescence scanning	2s for 32 wells fluorescence scanning	2s for 32 wells fluorescence scanning	2s for 32 wells fluorescence scanning
Fluorescence Channels	6	6	4	4
Dye Compatibility	Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. Channel 5: Alexa Fluor 680, etc. Channel 6: Tamra, Cy3, NED, etc.	Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. Channel 5: Alexa Fluor 680, etc. Channel 6: Tamra, Cy3, NED, etc.	Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc.	Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc.
Heating Rate	Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s	Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s	Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s	Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s
Cooling Rate	Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s	Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s	Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s	Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s
Temperature Accuracy	≤0.1℃	≤0.1℃	≤0.1℃	≤0.1℃
Temperature Uniformity	±0.2℃	±0.2℃	±0.2℃	±0.2℃
Temperature Precision	≤ 0.1°C	≤ 0.1°C	≤ 0.1°C	≤ 0.1°C
Repeatability	CV ≤ 1%	CV ≤ 1%	CV ≤ 1%	CV ≤ 1%
Linear Correlation	│r│≥ 0.995	│r│≥ 0.995	│r│≥ 0.995	│r│≥ 0.995
Sample Cabin	Three independent sample cabin	Three independent sample cabin	Three independent sample cabin	Three independent sample cabin
Lightsource	High-brightness, long-life, maintenance-free LED light source	High-brightness, long-life, maintenance-free LED light source	High-brightness, long-life, maintenance-free LED light source	High-brightness, long-life, maintenance-free LED light source
Key Applications	Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc.	Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc.	Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc.	Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc.
Special Temperature Protocol	Touchdown step, long step, gradient step, standard step and so on.	Touchdown step, long step, gradient step, standard step and so on.	Touchdown step, long step, gradient step, standard step and so on.	Touchdown step, long step, gradient step, standard step and so on.
Data Storage	1000 results can be stored in machine	1000 results can be stored in machine	1000 results can be stored in machine	1000 results can be stored in machine
Power Failure Protection	Automatically start running experiments after power supply	Automatically start running experiments after power supply	Automatically start running experiments after power supply	Automatically start running experiments after power supply
Communication Specification	Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0;	Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0;	Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0;	Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0;
Power Supply and Power Consumption	AC 100~240V;50/60Hz; 1000VA;	AC 100~240V;50/60Hz; 1000VA;	AC 100~240V;50/60Hz; 1000VA;	AC 100~240V;50/60Hz; 1000VA;
Suitable Consumables	Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white)	Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white)	Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white)	Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white)
Dimension	380mm(L) × 410mm (W) × 395mm (H)	380mm(L) × 410mm (W) × 395mm (H)	380mm(L) × 410mm (W) × 395mm (H)	380mm(L) × 410mm (W) × 395mm (H)
Weight	34kg	34kg	34kg	34kg
Certificate	IVDR CE	IVDR CE	IVDR CE	IVDR CE
