NexiusZoom (EVO)

NexiusZoom (EVO)

Stereo Microscope

The NexiusZoom and NexiusZoom EVO stereo microscopes enable examining your specimen with high-performance precision and generate three-dimensional images allowing observation for your highest demanding microscopy applications. These top level zoom microscopes are perfect for analyzing all kinds of material surfaces or to observe and prepare biological samples

These stereo microscopes are supplied with a large choice of stands, with or without LED illumination. Ideal for a wide variety of educational and laboratories applications. With additional lenses and objectives magnifications from 3.3 up to 220x can be achieved

Product video
NexiusZoom (EVO)

Highlights

  • Binocular and trinocular heads with HWF 10x/22 mm or HWF 10x/23 mm eyepieces (EVO)
  • Double 3 W LED illumination
  • Large working distance
  • 10 years warranty


  • Zoom ratio 1: 6.7, 6.7x to 45x or 1: 8.4, 6.5x to 55x
  • Ergonomic stands
  • Configurations up to 220x magnification
  • ESD safe models available
NexiusZoom (EVO)

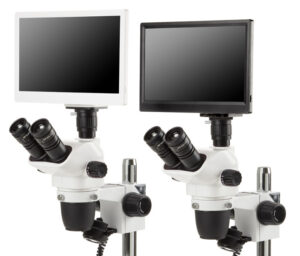

NexiusZoom (EVO) 5

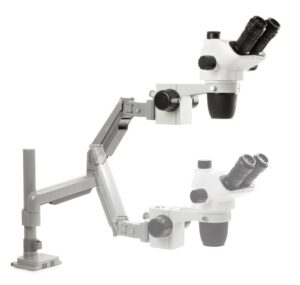

NexiusZoom (EVO) 4

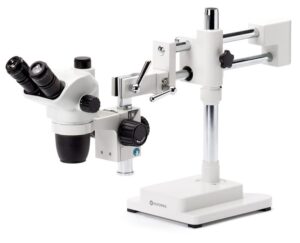

NexiusZoom (EVO) 3

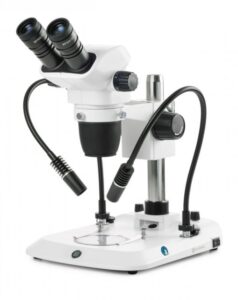

NexiusZoom (EVO) 2

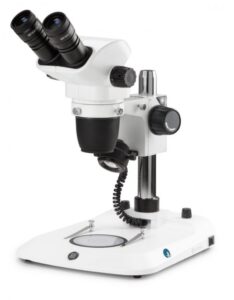

NexiusZoom (EVO) 1

EYEPIECES

  • The standard NexiusZoom is supplied with a pair of HWF 10x/22 mm eyepieces
  • The NexiusZoom EVO is supplied with a pair of HWF 10x/23 mm eyepieces

HEAD
Binocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments
Interpupillary distance adjustable between 54 mm and 75 mm. Trinocular head is supplied with a fixed light path beamsplitter (50:50).
The NexiusZoom EVO models are now equipped with click-stops

OBJECTIVES

  • The standard NexiusZoom is supplied with a 1:6.7 plan achromatic zoom objective with 0.67x to 4.5x magnifications, a field of view from 33 mm to 4.9 mm. Working distance 110 mm
  • The NexiusZoom EVO is supplied with a 1:8.4 plan achromatic zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4 mm to 4.2 mm. WD 110 mm

Auxiliary lenses 0.3x, 0.5x, 0.75x, 1.5x and 2.0x are available for the standard NexiusZoom and for the NexiusZoom EVO

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

POLARIZATION
The NexiusZoom can be supplied with an optional 360° rotatable round stage with built-in polarization filter and/or an optional rotatable analyzer filter in mount to be screwed under the objective
