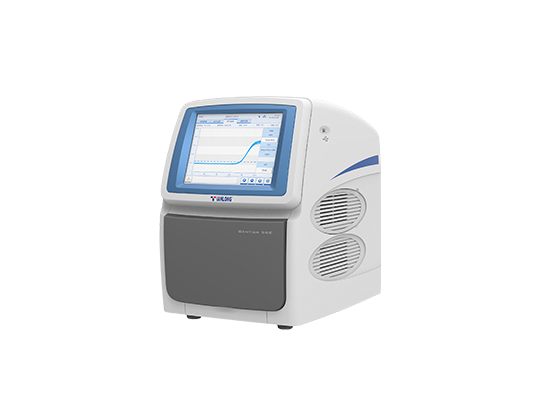

The Tianlong Gentier 96E real-time PCR system is a PCR test machine designed to meet the specific needs of high-end laboratories. Featuring six fluorescence channels, the Gentier 96E real-time PCR system is capable of processing 96 samples in one test run. Indulge in the powerful and efficient temperature control system, easy-to-use software, and user-friendly operational designs. Tianlong Gentier 96E real-time PCR system can provide maximal reliability and efficiency for all your real-time PCR needs.
96 samples to be scanned in 7s: The Gentier 96E real-time PCR system can significantly reduce testing time and improve efficiency for lab professionals, as it requires only 7 seconds to complete fluorescence scanning of all 96 wells.
Efficient temperature control: Based on the Peltier heating/cooling method, the maximum heating ramp rate is >6.1℃/s and the maximum cooling ramp rate is >5.0℃/s.
Power failure protection design:
Power failure protection design can recover the experiment automatically, with no more concern about instantaneous power failure.
More convenient with two configurations Standalone configuration:10.4-inch touch screen PC control configuration: PC software control via connection.
Powerful software analysis: Gentier 96 E/R real-time PCR system offers various data analysis functions, including absolute quantitative analysis, relative quantitative analysis, SNP analysis, melting curve analysis, etc.
Model | Gentier 96E |
Throughput | 1- 96 |
Fluorescence Channel | 6 |
Fluorescence Scanning Time | 7 seconds |
Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green |
Optical System | |
Light Source | High-brightness, long life and maintenance-free LED light source,excitation from the top |
Detector | Photodiodes (PDs), top scanning |
Excitation Range | CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm |
Detection Range | CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm |
Fluorescence Dynamic Range | Range |
Sample Dynamic Range | From 101 to 1010copies |
Heating Method | Peltier |
Heating Rate | >6.1 ℃/s |
Cooling Rate | >5.0 ℃/s |
Temperature Uniformity | ±0.1 ℃ |
Temperature Accuracy | ≤0.1 ℃ |
Gradient Range | 1℃-40 ℃ |
Gradient Block | 12 row |
Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 |
| |
| Model 1: 10.4 inch touch screen |
Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
Reporting Function | Templates reserved; customized experiment report |
Operating System for PC | Win7/Win10/Win11 |
Power Supply and Power Consumption | AC 100-240V,50-60HZ, 900VA |
Weight | 30 Kg (net) |
Certificate | IVDR CE |
